Lemo B Series Connectors Male Female EGG FGG 2-16 Pin Circular Self Locking Connectors

Name: Lemo B Series Connectors Male Female EGG FGG 2-16 Pin Circular Self Locking Connectors
Brand: Ebuddy Technology Co.,Limited
SKU: FGG는 선동합니다
Price: 22.30 USD
Availability: InStock

브랜드 이름:	OEM
모델 번호:	FGG는 선동합니다
모크:	1pc
가격:	협상 가능
배달 시간:	3-10 근무일
지불 조건:	웨스턴 유니온, 머니그램, T/T, 페이팔

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

인증:

CE,ROHS

시리즈:

레모 B 시리즈

연락처:

2-16핀

절연체:

Ｐ :PPS

종료 방법:

솔더

짝짓기주기:

5000배

연락처 유형:

수컷 플러그 및 여성 소켓

IP 등급:

IP50

재료:

놋쇠

색상:

실버, 블랙

포장 세부 사항:

PP 백

공급 능력:

한 달에 50000pc

강조하다:

Lemo B Series circular connectors

self-locking Lemo B connectors

EGG FGG 2-16 pin connectors

제품 설명

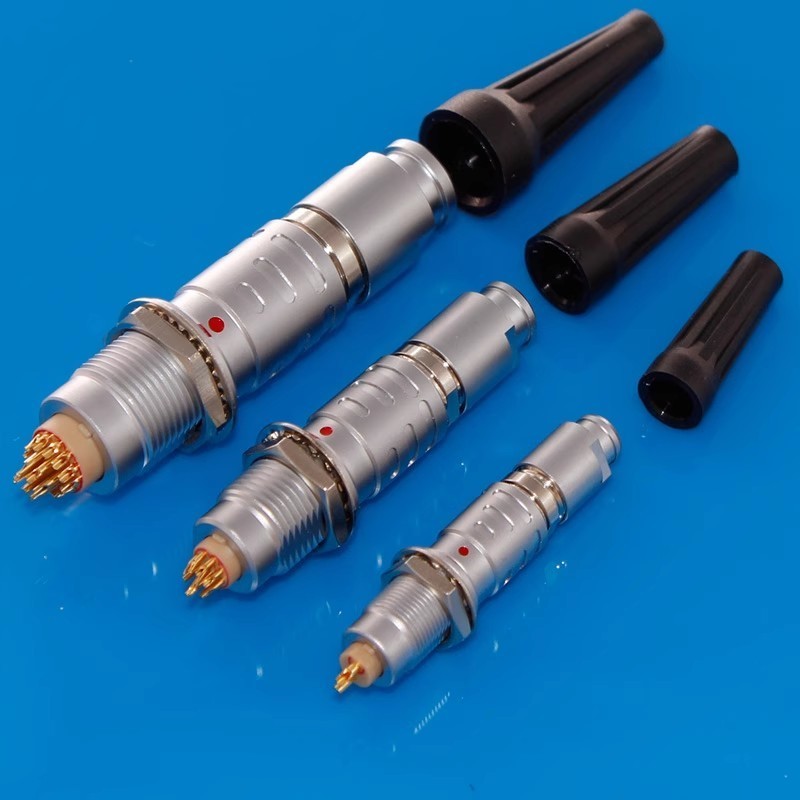

Lemo B Series Connectors Male Female EGG FGG 2-16 Pin Circular Self Locking Connectors

Product Features

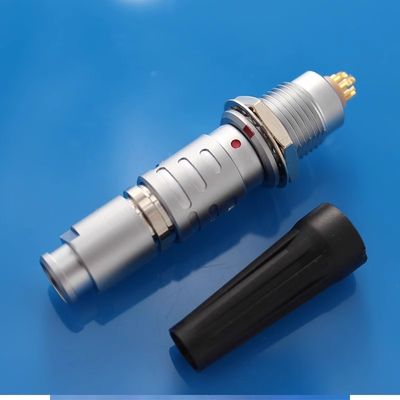

100% compatible Lemo B series FGG male plug & EGG female socket
0B 1B 2B 2-16pins free socket for extension cable
Application: Audio & Video, Automotive, PCB, Communication, Aviation
Housing Material: Brass chrome plated
Mating cycles: 5000 times
IP Rating: IP50

Applications

Medical Equipment
Test & Measurement
Industrial Automation
Defense and Aerospace
Broadcast and Professional Audio/Video (AV)
Research and Scientific Instruments

Size & Drawings

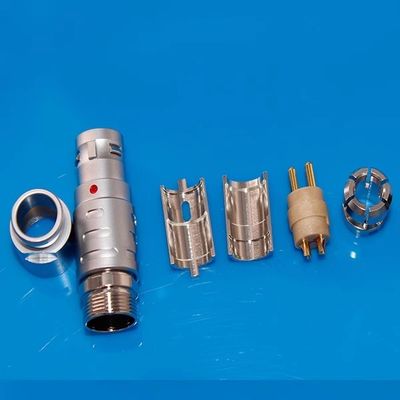

DIY Cable Assembly Process

Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
Put the split insert carrier to the soldered insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
Put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier
Push the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
Screw the collet nut tightly
Hitch the sleeve to the corresponding step of collet nut

Frequently Asked Questions

About Price

Q1: Will you please let us have an idea of your price?

A1: In general, our prices are given on a EXW basis.

Q2: Do you give any discount?

A2: I'll surely try my best to help you get those by the best price and good service at the same time, if your order is big enough.

About MOQ

Q3: What is the MOQ?

A3: No MOQ limited, small order is accepted, all is depend on customer real needs.

About Delivery

Q4: What about our request for the early delivery of the goods?

A4: I think we can meet your requirement.

Q5: How long and how to get sample from us?

A5: 1) If you need some sample, we can make as per your request. You should pay for the transportation freight of samples and sample cost. The sample cost can be refundable if order is confirmed.
2) Lead time for making sample: about 2 days
3) The transportation freight of samples: the freight depends on the weight and packing size and your area.

About Company

Q6: How about your quality control?

A6: All the products will be 100% double check before the shipment.

Q7: How do you make our business long-term and good relationship?

A7: 1) We keep good quality and competitive price to ensure our customers benefit.
2) We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

About Payment

Q8: What payment methods your company accept?

A8: We accept most of the payment methods, but mainly accept TT, LC, Paypal.
