제품 세부 정보

집 상품

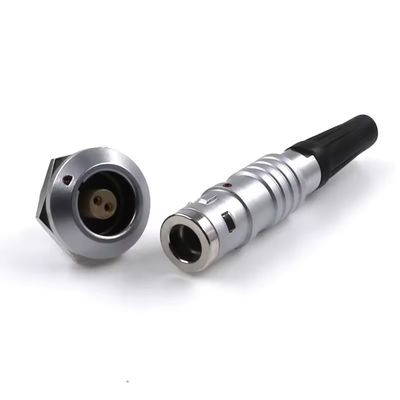

Lemo K Series Self-locking Connectors Waterproof IP68 Plug And Socket For Medical Industry

Name: Lemo K Series Self-locking Connectors Waterproof IP68 Plug And Socket For Medical Industry
Brand: Ebuddy Technology Co.,Limited
SKU: EB-TGG.0K.302
Price: 0.50 USD
Availability: InStock

브랜드 이름:	Ebuddy
모델 번호:	EB-TGG.0K.302
모크:	1
가격:	협상 가능
배달 시간:	견본을 위한 3-5days
지불 조건:	L/C, T/T, Western Union, PayPal

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

인증:

CE,ROHS

연락하다:

2 ~ 32 핀

색상:

은

재료:

황동 크롬 도금

크기:

레모 0K 1K 2K

스타일:

플러그와 소켓

성별:

여성과 남성

보호 수준:

IP66-IP68

주택 재료:

펄 크롬 도금된 구리 합금

응용 프로그램:

의료

포장 세부 사항:

컬러 박스

공급 능력:

한 달에 100000pc

강조하다:

Lemo K Series waterproof connectors

medical industry self-locking connectors

IP68 rated Lemo K connectors

제품 설명

Lemo K Series Self-locking Connectors Waterproof IP68 Plug And Socket For Medical Industry

Features:

Smart push-pull self-latching system
Multi-core types with 2 to 32 pins
Solder or PCB contacts (straight and elbow)
Different kinds of keying options to avoid mismatching
360 degree screening for full EMC shielding
Waterproof connector (IP66 to 68)
Rugged housing for extreme working conditions
High packing density for space savings

Technical Data (Lemo 0K 7pin Example):

Shell Style/Model	FGG male plug and EGG female Receptacle
Keying	1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material	Brass (black chrome) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces
Rated Current	7A
Contact Dia	0.7 mm (0.028in)
R (max)	6.1 mOhm
Contact Type	Solder
Vtest	700-1000V
Endurance (Shell)	5000

Size And Drawings (7pin Example):

Applications:

Broadcast

Audio/video

Medical

Defense Security

Instrumentation

Transportation

Industry

Energy

FAQ:

About price

Q1: Will you please let us have an idea of your price?

A1: In general, our prices are given on a EXW basis.

Q2: Do you give any discount?

A2: I'll surely try my best to help you get those by the best price and good service at the same time, if your order is big enough.

About MOQ:

Q3: What is the MOQ?

A3: No MOQ limited, small order is accepted, all is depend on customer real needs.

About delivery:

Q4: What about our request for the early delivery of the goods?

A4: I think we can meet your requirement.

Q5: How long and how to get sample from us?

A5: 1) If you need some sample, we can make as per your request. You should pay for the transportation freight of samples and sample cost. The sample cost can be refundable if order is confirmed.
2) Lead time for making sample: about 2 days
3) The transportation freight of samples: the freight depends on the weight and packing size and your area.

About company:

Q6: How about your quality control?

A6: All the products will be 100% double check before the shipment.

Q7: How do you make our business long-term and good relationship?

A7: 1) We keep good quality and competitive price to ensure our customers benefit.
2) We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

About payment:

Q8: What payment methods your company accept?

A8: We accept most of the payment methods, but mainly accept TT, LC, Paypal.
