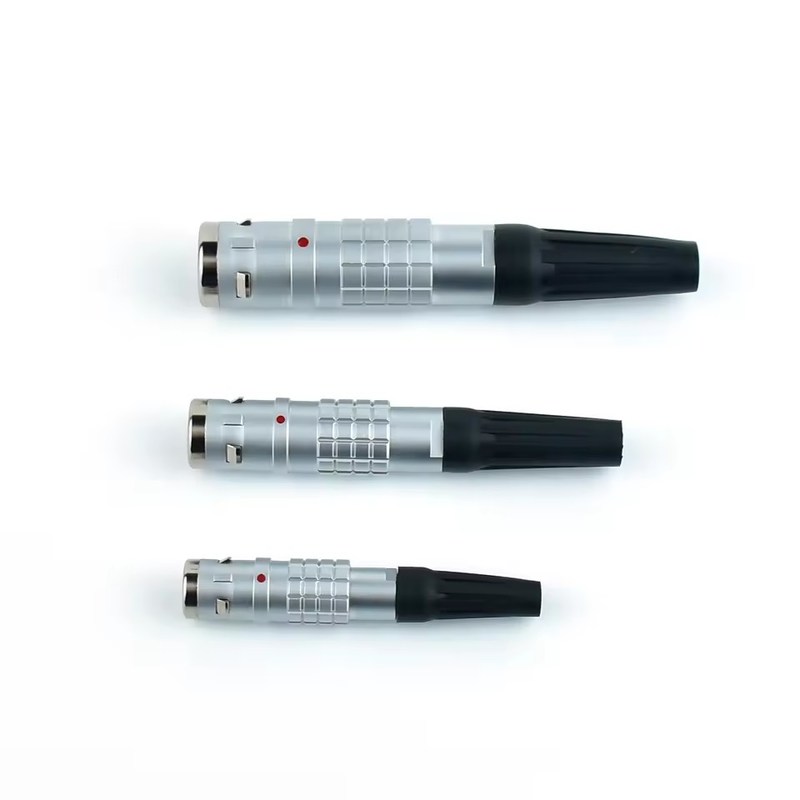

Lemo K Series Compatible Waterproof IP68 Connectors Long Endurance with Brass Housing and High Voltage Test

Name: Lemo K Series Compatible Waterproof IP68 Connectors Long Endurance with Brass Housing and High Voltage Test
Brand: Ebuddy Technology Co.,Limited
SKU: ED-TGG.0K.307
Price: 0.50 USD
Availability: InStock

브랜드 이름:	Ebuddy
모델 번호:	ED-TGG.0K.307
모크:	1
가격:	협상 가능
배달 시간:	샘플을 위한 3-5 일
지불 조건:	L/C, T/T, Western Union, PayPal

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

인증:

CE,ROHS

연락처:

2~20핀

색상:

실버 / 블랙

재료:

황동 크롬 도금

크기:

레모 0K 1K 2K 3K 4K

스타일:

플러그와 소켓

성별:

남성과 여성

IP 등급:

IP67, IP68

어플리케이션:

산업 자동화

맥스. 교배:

5000회 이상

포장 세부 사항:

PP 가방/맞춤형 패키지

공급 능력:

한 달에 100000pc

강조하다:

Lemo K Series waterproof IP68 connectors

Lemo K Series brass housing connectors

Lemo K Series high voltage connectors

제품 설명

Lemo K Series Compatible Waterproof IP68 Connectors Long Endurance with Brass Housing and High Voltage Test

Features Of Lemo K series Connectors:

Mechanicallife: >5000 times;
Operatingtemperature: -45°C~+125°C;
Waterproof grade: lP66~lP68,
Salt spray: 5%NaCl fog in 96h;
Relative humidity: up to 95% at 60°C;
Impact: 100g,6ms;
Vibration: 10~2000Hz,15g
Air leakage: when 1.0-10'Pa pressure difference is applied atboth ends of the socket, the leakage rate is not greater than1.0Pa*cm/s;
Water pressure: The plugged connector is immersed in 2m depthof water, after 24h,there is no water seepage at the connectorinterface, and after drying at room temperature for 30min, itsinsulation resistance should comply with the water pressureconditions stipulated in military standard 3.2.8

Technical data (Lemo 0K 7pin Connectors):

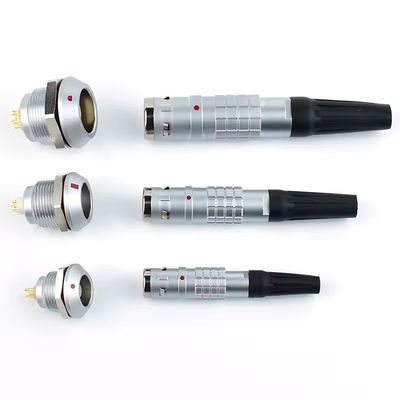

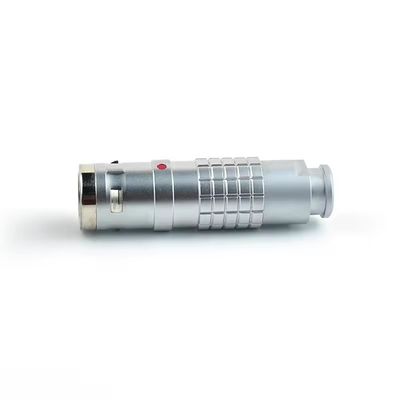

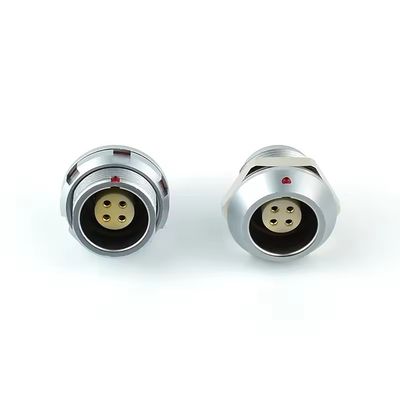

Shell Style/Model	FGG male plug and EGG female Receptacle
Keying	1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material	Brass (black chrome) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces
Rated Current	7A
Contact Dia	0.7 mm (0.028in)
R (max)	6.1 mOhm
Contact Type	Solder
Vtest	700-1000V
Endurance (Shell)	5000 times

Size and Drawing: (Lemo 0K 7pin Connectors):

Applications:

Industrial Control
Test and Measurement Equipment
Information Systems
Automotive and Military
Extreme Working Conditions
Harsh Environments

FAQ

Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
Cable assembly service: we can supply cable assembly service according to your requirements.
Technical support: Any questions or problems in your connector's or cable's working, our technical department will supply professional support to help you solve them.
Cable assembly solution supply: We can make cable assembly service solution to meets you need.
Customized connector service: if our present connectors can't suit exactly what you need, we can open new mould for you.

태그:
